1280x1024 Scelerisque Network Camera Module cum 30~ 180mm(30~ 120mm) Motorised Lens

Model

SG-TCM06N2-M30180

SG-TCM06N2-M30120

Sensor

Imago Sensor

Uncooled VOx microbolometer

Resolution

1280× 1024

Frame Rate

50Hz

Pixel Pix

12μm

Spermatophyta

8~14μm

NETD

≤35mK@25°C, F#1.0

Lens

Coating

DLC

Arx Longitudo

30~180mm

30~120mm

Lens Type

Motorised

Motorised

Optical Zoom

6x

4x

Digital Zoom

8x

8x

F Value

F1.0~F1.4

F1.0~F1.4

FOV

28.72°×23.15°~4.89°×3.91°

28.72°×23.15°~7.32°×5.86°

Video

Cogo

H.265/H.264/H.264H/H.264B/MJPEG

Audio Compressionem

AAC / MP2L2

Snapshot

JPEG

Resolution

Principalis Stream: 50fps@ (1280×1024, 1280×720, 704×576, 704×480)
Sub-Stream1/2: 50fps@(704×576, 704×480, 352×288, 352×240)

Video Bit Rate

4kbps~40Mbps

Network

Network Protocol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Securitatis Network

User authenticitate, IP/MAC Filtering, HTTPS Encryption, IEEE 802.1X Network Access Imperium

Web Pasco

IE, Ore, Firefox, Chrome

User

Usque ad 20 users, 2 level: Administrator, User

Repono

Micro SD/SDHC/SDXC card (Usque ad 1TB) ora repono, FTP, NAS

Multicast

Support

intelligentia

Perimeter Praesidium

Tripwire, Cross Fence Deprehensio, Intrusio

Morum Analysis

Relicta Object, Remotio Object, Fast - Movens, Turba Deprehensio, mora Deprehensio, Quisque Deprehensio

Events

Motus Detection, Video Occlusion, Scene Mutatio, Audio Detectio, Network Disconnected, IP Conflictus, Illegal Obvius, Repono Anomaliae

Ignis Deprehensio

Support

Interface

Ethernet

4PIN Aer portus, 10M/100M auto-aptatio

Terrorem in / E

1/1

Audio In / Out

1/1

Imperium Interface

1x TTL 3.3V (protocollum VISCA);

1x RS485 (protocollum Pelco) (TTL 3.3V ad libitum)

Video output

Network

Pseudo Color

Album calidum, nigrum calidum, fusio, ferrum rubeum, etc

Focus Modus

Auto / Manual / Ventilabis unum AF

FFC Modus

Auto / Manual

Imago Occasus

Splendor, Contra, Acuitas et Reductio Temporalis Nox

EIS

Support

OSD

Support

Flip

Support

Speculum

Support

Potestas Supple

DC 12V, 1A

Typical Power Consumptio

3.8W

Picum Potentia Consummatio

7.3W

7.1W

Conditiones operating

-30°C~+60°C/20% ad 80%RH

Repono Conditions

-40°C~+70°C/20% ad 95%RH

1st Lens Praesidium Level

IP67

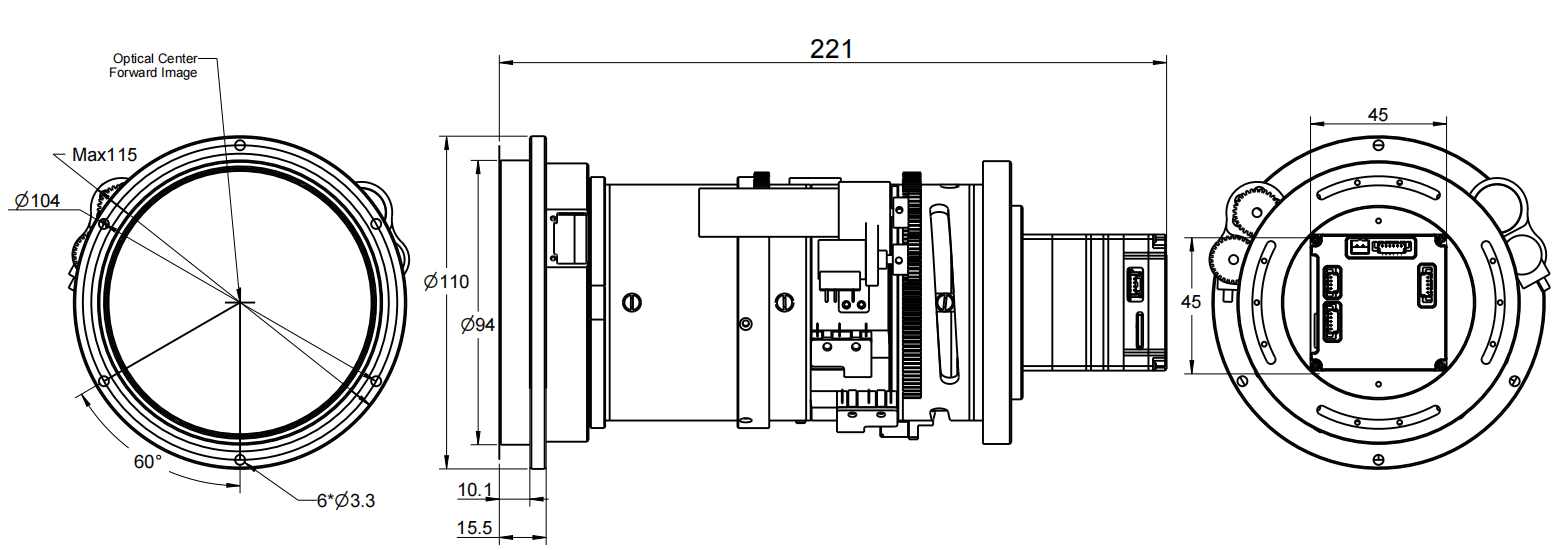

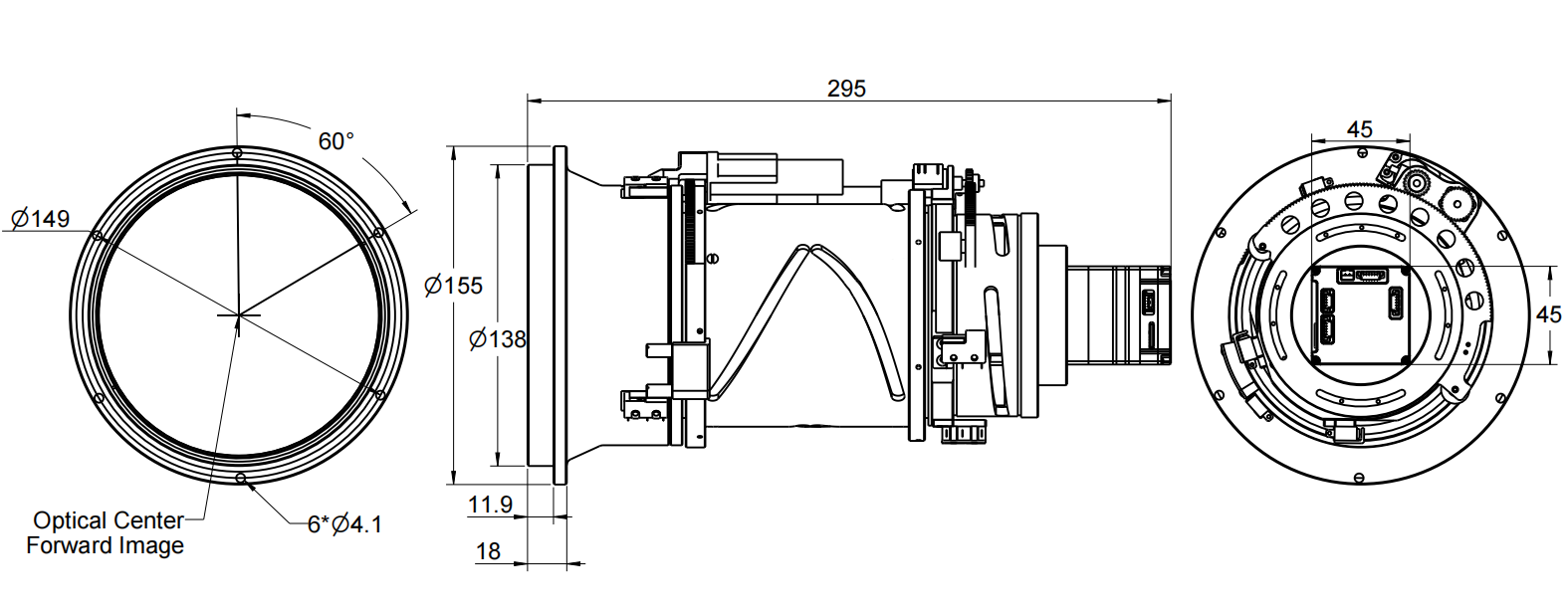

Dimensiones (L*W*H)

Φ155*295mm

Φ110*221mm (Flange)

Φ120*221mm (Max. Proiectio)

Pondus

Proxime. 3.2kg (Including lens cap)

Proxime. 1.69kg (Including lens cap)
