12um 640x512 USB output pacto magnitudine scelerisque moduli
|
Model Number |
SG - HTM06U2 - T9 |
SG - HTM06U2 - T15 |
SG - HTM06U2 - T19 |
SG - HTM06U2 - T25 |
|
Thermal OMNIBUS |
||||
|
Imago sensorem |
Vox Vox-uncooled arx planum arrays |
|||
|
Max. Resolutio |
DCXL × DXII |
|||
|
Rate frame |
Novifacta, 6Hz ad 30Hz |
|||
|
Pixel intervallum |
12μm |
|||
|
RESPONSIO Waveband |
8μm ad 14μm |
|||
|
Netd |
≤ 40mk (@ XXV ° F), F # = 1.0 |
|||
|
Lens (focalis longitudinem) |
9.1mm |
15mm |
19mm |
25mm |
|
F numerus |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Ifov |
1.3MRAD |
0.8MRAD |
0.6mrad |
0.48mrad |
|
Ager View (H × V) |
48.3 ° × 38,6 ° |
29.3 ° × 23.4 |
22.8 ° × 18.4 |
17.46 ° × 14.01 |
|
Min. PROMPTUM |
2m |
5m |
7m |
8m |
|
Temperatus |
||||
|
Temperature range |
- XX ° C ° C ° C ° C ° C ° F |
|||
|
Temperamentum accurate |
Max (± II ° C, ± II%) ad ambientium temperatus XXV ° C et obiecti temperatus supra 0 ° C |
|||
|
Temperatus procul (Ex 0.65 × 0.65M) |
10m (extremis) |
15m (extremis) |
20m (extremis) |
25m (extremis) |
|
Thermography regula |
III temperatus mensurae regulae genera, XXI praecepta (X puncta, X regionum et I linea) |
|||
|
Notitia output |
16bit temperatus notitia |
|||
|
Imaginem ostentationem |
||||
|
Contra temperatio |
Sic |
|||
|
Claritas temperatio |
Sic |
|||
|
Palettes |
XV Palettes de color Populus Novifacta, default White Hot |
|||
|
FFC (Flat agri Correctionem) Modus |
Auto, manual, correptionem |
|||
|
Dde |
Sic |
|||
|
Generativus |
||||
|
Hardware interface |
Usb2.0 fpc |
|||
|
Potentia |
DC 5V ± V% |
|||
|
Potentiam consummatio |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65w |
|
Vibrationis & Mass |
Vibrationis: Sinusoidal vibrationis, XX m / s ², III - axis Mass: SEMIBUS Sine unda, XXX g / XI MS, III - Axis VI - modo |
|||
|

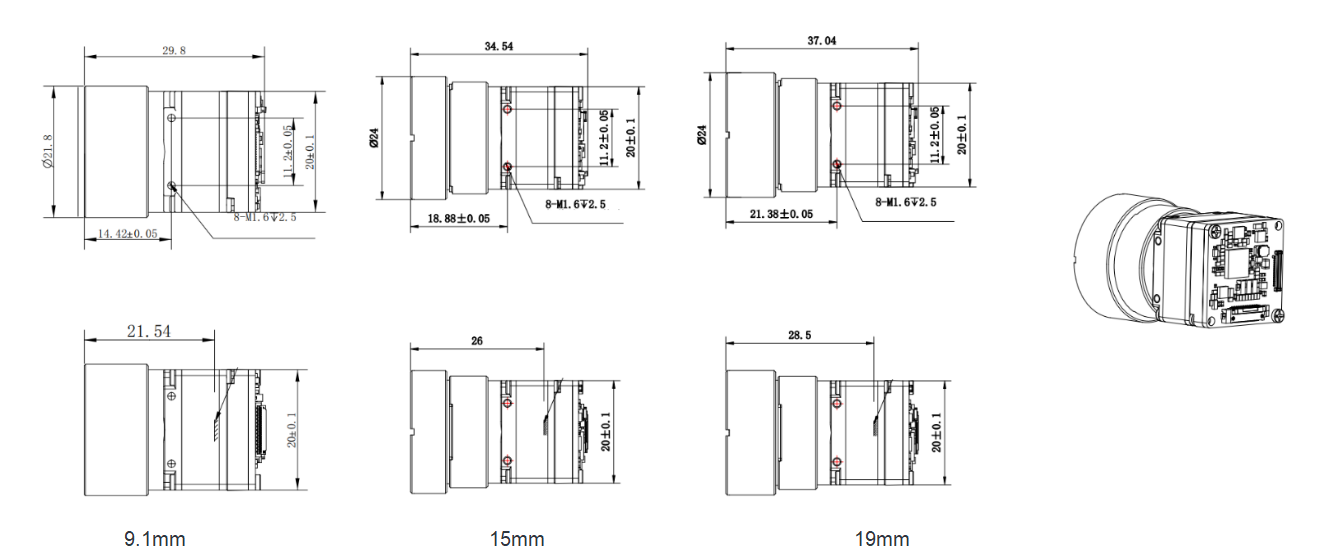

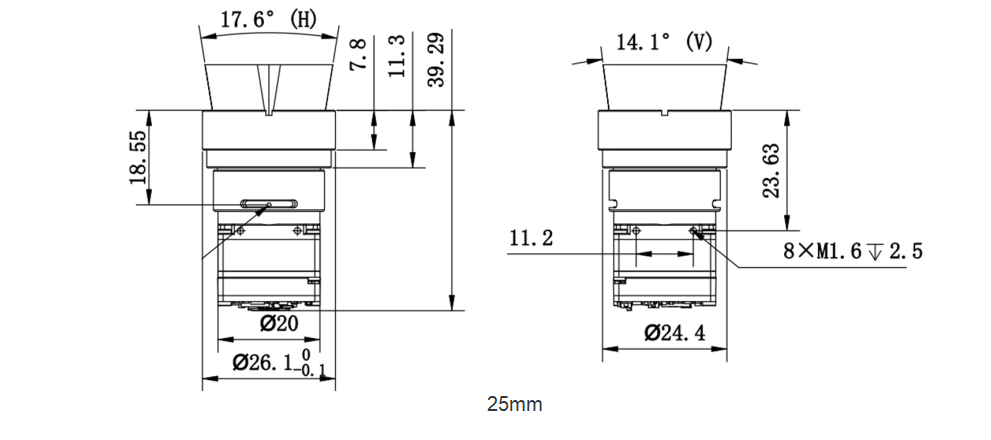

Dimensionem (mm) |
29.8 * XX * 20mm |
34.54 * XX * 20mm |
37.04 * XX * 20mm |
39.29 * XX * 20mm |
|
Pondus |
≤22g |
≤28g |
≤32g |
≤33g |
|
Opus temperatus |
- XL ° C ° C ° C |
|||
