640x512 Scelerisque Network Camera Module cum 25~ 225mm(30~ 150mm, 25~75mm) Motorised Lens

Model

SG-TCM06N2-M25225

SG-TCM06N2-M30150

SG-TCM06N2-M2575

Sensor

Imago Sensor

Uncooled VOx microbolometer

Resolution

640×512

Frame Rate

50Hz

Pixel Pix

12μm

Spermatophyta

8~14μm

NETD

≤40mK@25°C, F#1.0

Lens

Coating

DLC

Arx Longitudo

25~225mm

30~150mm

25~75mm

Lens Type

Motorised

Motorised

Motorised

Optical Zoom

9x

5x

3x

Digital Zoom

8x

8x

8x

F Value

F1.0~F1.5

F1.0~F1.2

F1.0~F1.2

FOV

17.46°×14.01°~

1.96°×1.56°

14.59°×11.69°~

2.93°×2.35°

17.46°×14.01°~

5.86°×4.69°

Video

Cogo

H.265/H.264/H.264H/H.264B/MJPEG

Audio Compressionem

AAC / MP2L2

Snapshot

JPEG

Resolution

Principalis Stream: 50fps@ (1280×1024, 1280×720, 704×576, 704×480)
Sub-Stream1/2: 50fps@(704×576, 704×480, 352×288, 352×240)

Video Bit Rate

4kbps~40Mbps

Network

Network Protocol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Securitatis Network

User authenticitate, IP/MAC Filtering, HTTPS Encryption, IEEE 802.1X Network Access Imperium

Web Pasco

IE, Ore, Firefox, Chrome

User

Usque ad 20 users, 2 level: Administrator, User

Repono

Micro SD/SDHC/SDXC card (Usque ad 1TB) ora repono, FTP, NAS

Multicast

Support

intelligentia

Perimeter Praesidium

Tripwire, Cross Fence Deprehensio, Intrusio

Morum Analysis

Relicta Object, Remotio Object, Fast - Movens, Turba Deprehensio, mora Deprehensio, Quisque Deprehensio

Events

Motus Detection, Video Occlusion, Scene Mutatio, Audio Detectio, Network Disconnected, IP Conflictus, Illegal Obvius, Repono Anomaliae

Ignis Deprehensio

Support

Interface

Ethernet

4PIN Aer portus, 10M/100M auto-aptatio

Terrorem in / E

1/1

Audio In / Out

1/1

Imperium Interface

1x TTL 3.3V (protocollum VISCA);

1x RS485 (protocollum Pelco) (TTL 3.3V ad libitum)

Video output

Retiacula et CVBS

Pseudo Color

Album calidum, nigrum calidum, fusio, ferrum rubeum, etc

Focus Modus

Auto / Manual / Ventilabis unum AF

FFC Modus

Auto / Manual

Imago Occasus

Splendor, Contra, Acuitas et Reductio Temporalis Nox

OSD

Support

Flip

Support

Speculum

Support

Potestas Supple

DC 12V, 1A

Typical Power Consumptio

2.5W

Picum Potentia Consummatio

6.5W

7.3W

7.5W

Conditiones operating

-30°C~+60°C/20% ad 80%RH

Repono Conditions

-40°C~+70°C/20% ad 95%RH

1st Lens Praesidium Level

IP67

Dimensiones (L*W*H)

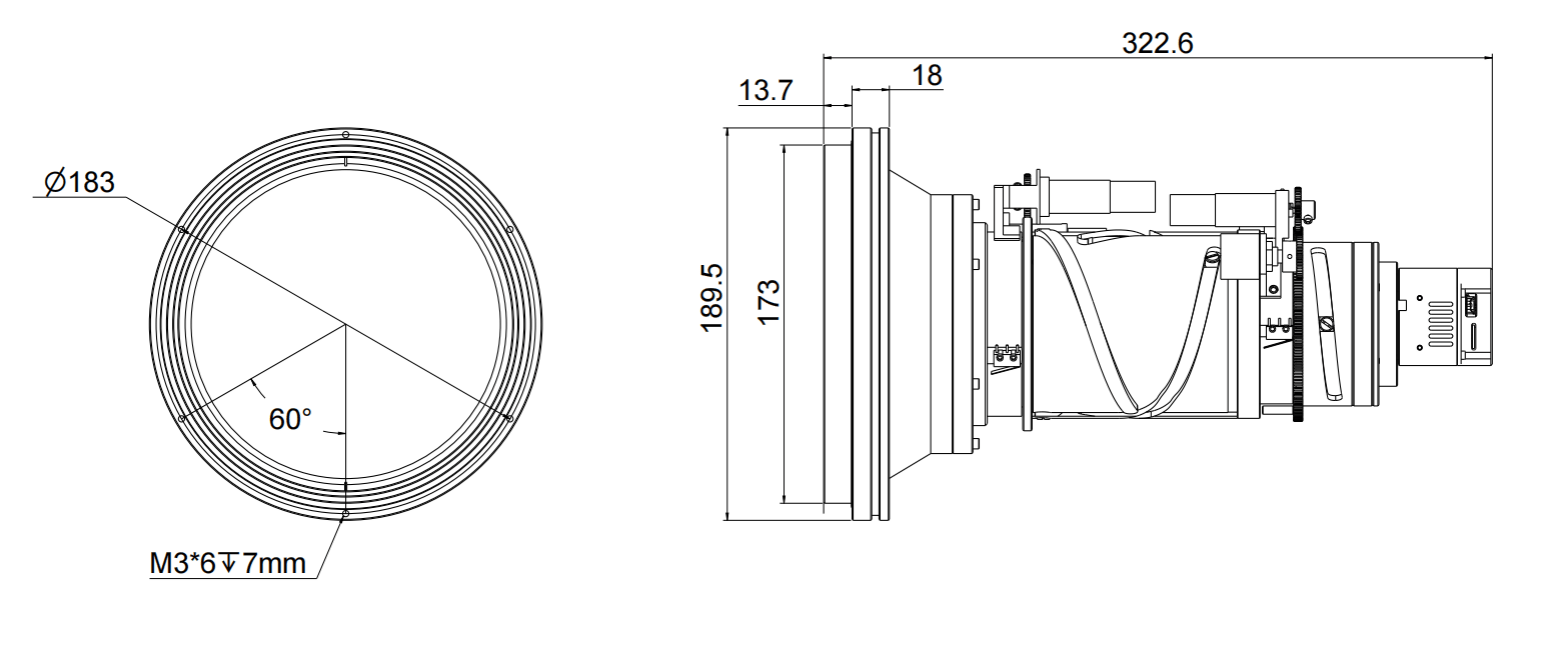

Φ190*322.6mm

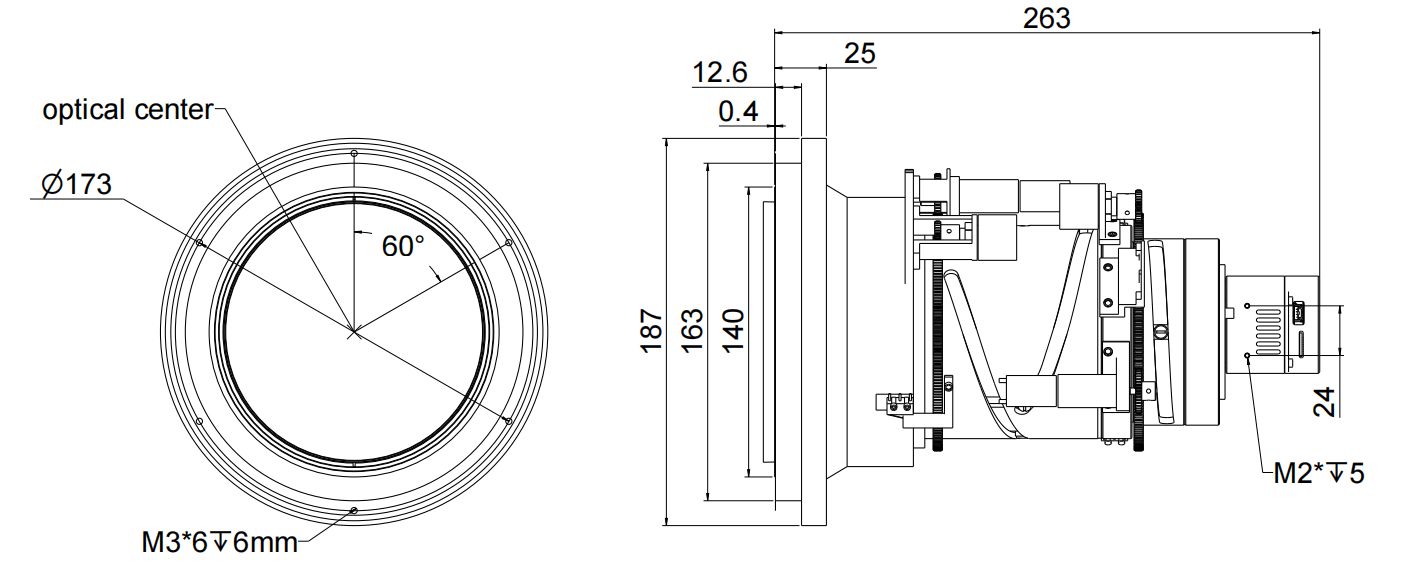

Φ187*263mm

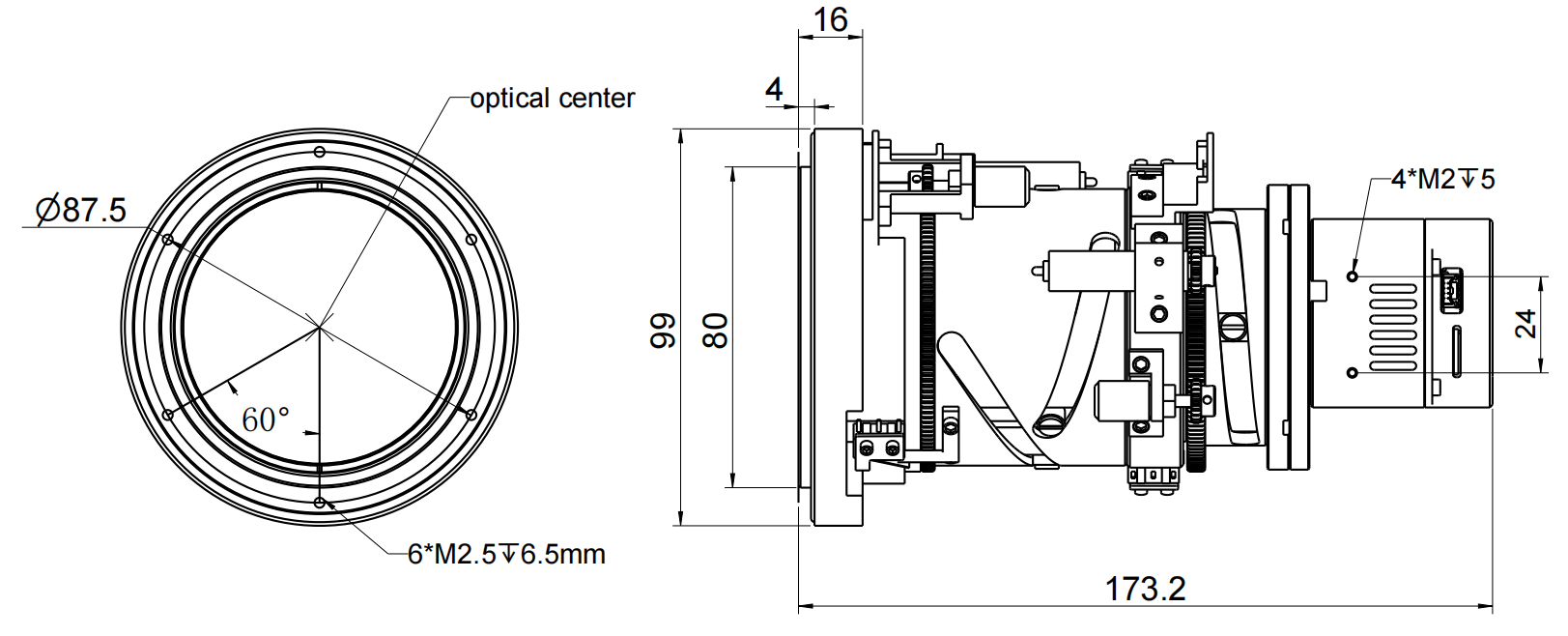

Φ99*173.2mm

Pondus

Proxime. 3.57kg

Proxime. 3.36kg

Proxime. 960g
