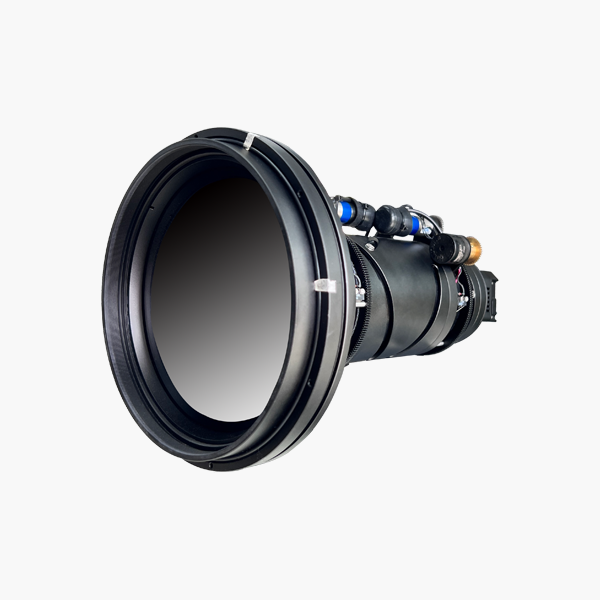

1280x1024 Scelerisque Network Camera Module cum 25~ 225mm(30~150mm) Motorised Lens

Model

SG-TCM12N2-M25225

SG-TCM12N2-M30150

Sensor

Imago Sensor

Uncooled VOx microbolometer

Resolution

1280× 1024

Frame Rate

50Hz

Pixel Pix

12μm

Spermatophyta

8~14μm

NETD

≤35mK@25°C, F#1.0

Lens

Coating

DLC

Arx Longitudo

25~225mm

30~150mm

Lens Type

Motorised

Motorised

Optical Zoom

9x

5x

Digital Zoom

8x

8x

F Value

F1.0~F1.5

F1.0~F1.2

FOV

34.15°×27.61°~3.91°×3.13°

28.72°×23.15°~5.86°×4.69°

Video

Cogo

H.265/H.264/H.264H/H.264B/MJPEG

Audio Compressionem

AAC / MP2L2

Snapshot

JPEG

Resolution

Principalis Stream: 50fps@ (1280×1024, 1280×720, 704×576, 704×480)
Sub-Stream1/2: 50fps@(704×576, 704×480, 352×288, 352×240)

Video Bit Rate

4kbps~40Mbps

Network

Network Protocol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Securitatis Network

User authenticitate, IP/MAC Filtering, HTTPS Encryption, IEEE 802.1X Network Access Imperium

Web Pasco

IE, Ore, Firefox, Chrome

User

Usque ad 20 users, 2 level: Administrator, User

Storage

Micro SD/SDHC/SDXC card (Usque ad 1TB) ora repono, FTP, NAS

Multicast

Support

intelligentia

Perimeter Praesidium

Tripwire, Cross Fence Deprehensio, Intrusio

Morum Analysis

Relicta Object, Remotio Object, Fast - Movens, Turba Deprehensio, mora Deprehensio, Quisque Deprehensio

Events

Motus Detection, Video Occlusion, Scene Mutatio, Audio Detectio, Network Disconnected, IP Conflictus, Illegal Obvius, Repono Anomaliae

Ignis Deprehensio

Support

Interface

Ethernet

4PIN Aer portus, 10M/100M auto-aptatio

Terrorem in / E

1/1

Audio In / Out

1/1

Imperium Interface

1x TTL 3.3V (protocollum VISCA);

1x RS485 (protocollum Pelco) (TTL 3.3V ad libitum)

Video output

Network

Pseudo Color

Album calidum, nigrum calidum, fusio, ferrum rubeum, etc

Focus Modus

Auto / Manual / Ventilabis unum AF

FFC Modus

Auto / Manual

Imago Occasus

Splendor, Contra, Acuitas et Reductio Temporalis Nox

EIS

Support

OSD

Support

Flip

Support

Mirror

Support

Potestas Supple

DC 12V, 1A

Typical Power Consumptio

3.8W

Picum Potentia Consummatio

7.5W

7.3W

Conditiones operating

-30°C~+60°C/20% ad 80%RH

Repono Conditions

-40°C~+70°C/20% ad 95%RH

1st Lens Praesidium Level

IP67

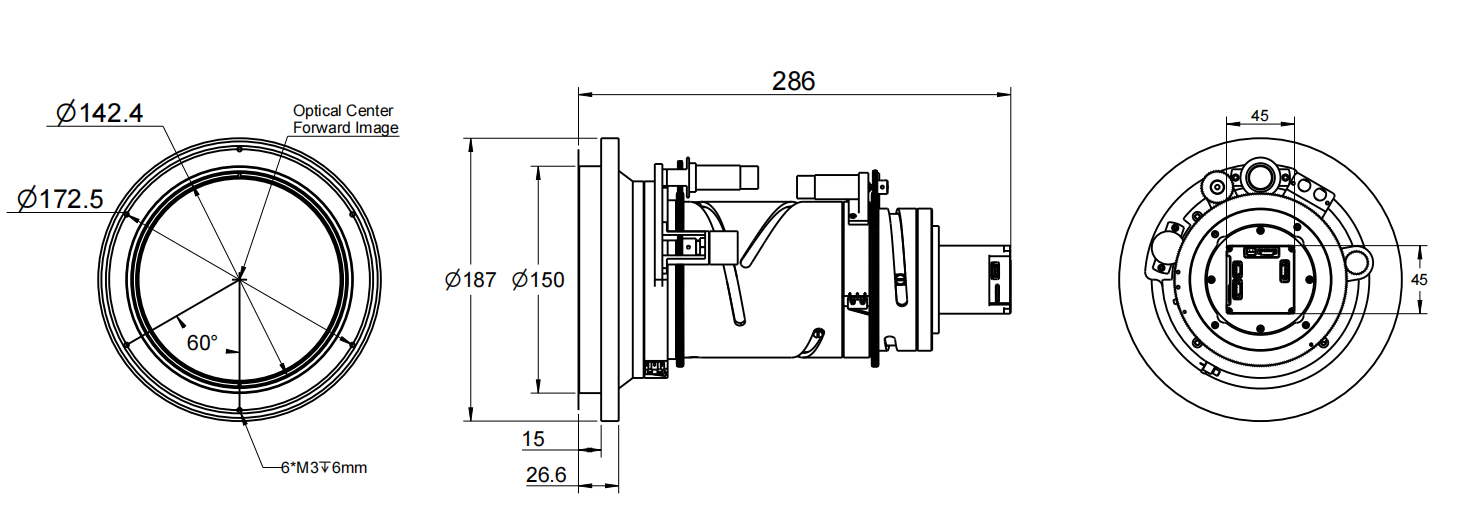

Dimensiones (L*W*H)

Φ195*321mm

Φ187*286(mm)

Weight

Proxime. 5kg

Proxime. 4.6kg

Lens

Detect

Rcognoscere

Identify

Vehicle

Human

Fire

Vehicle

Human

Fire

Vehicle

Human

Fire

30mm

3833m (12575ft)

1250m (4101ft)

217m

(712ft)

958m (3143ft)

313m (1027ft)

54m

(177ft)

479m (1572ft)

156m (512ft)

27m

(89ft)

150mm

19167m (62884ft)

6250m (20505ft)

1083m

(3553ft)

4792m (15722ft)

1563m (5128ft)

271m

(899ft)

2396m (7861ft)

781m (2,562ft)

135m

(443ft)

225mm

28750m (94324ft)

9375m (30758ft)

1625m

(5331ft)

7188m (23583ft)

2344m (7690ft)

406m

(1332ft)

3594m (11791ft)

1172m (3845ft)

203m

(666ft)
