500m distantia 850nm infrared Laser Illuminator Module


> Intelligens auto- dimming, Smart match, Hot-swappable
> -30℃ humilis temperatus frigus incipiens
> VCSEL Laser
> Synchronised zoom with Savgood visibilis camera
> Patet pictura et macula terminus


Specification

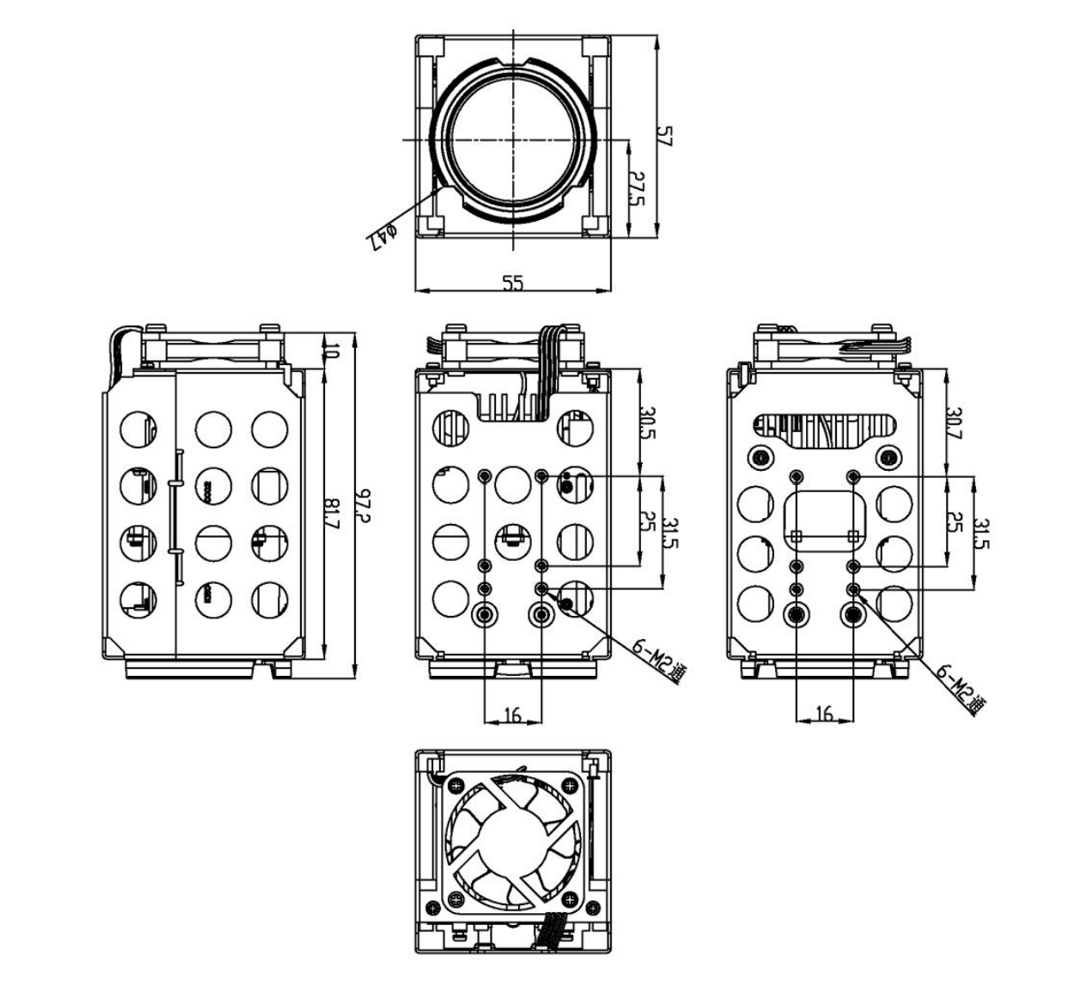

Dimension

Model

SG-IR850-5M

Effective distantia ≥500m
Modus VCSEL
Necem 850±10nm (940nm, 980nm ad libitum)
Input Power ≤11W
Laser Chip Power 2.2±0.3W
Output lux Power 2.0±0.3W
Laser Beam Anglus Absit angulus 2.0°, efficax distantia>500m, trabem Macula diametri<φ18m
Prope angulum 70°, distantia efficax> 50m
Imperium Modus UART_TTL, RS-485, Manual
Communicationis Interface RS-485, TTL232, Manuale Control
Communication Protocol Pelco-D (9600bps Default, 4800bps, 2400bps for ad libitum)
Modus working Continues
Service Vita > 30000H
Input Power DC12V±10%, 2.1A±0.2A
Operatio Temperature -20°C~+60°C
Repono Temperature -40°C~+85°C
Dimension 97mmx55mmx57mm
Pondus 230g
