3000m distantia 808nm infrared Laser Illuminator Module


> Intelligens auto- dimming, Smart match, Hot-swappable
> -35℃ humilis temperatus frigus incipiens
> Fibra coitus Edge emittens laser (EEL)
> Synchronised zoom with Savgood visibilis camera
> Patet pictura et macula terminus


Specification

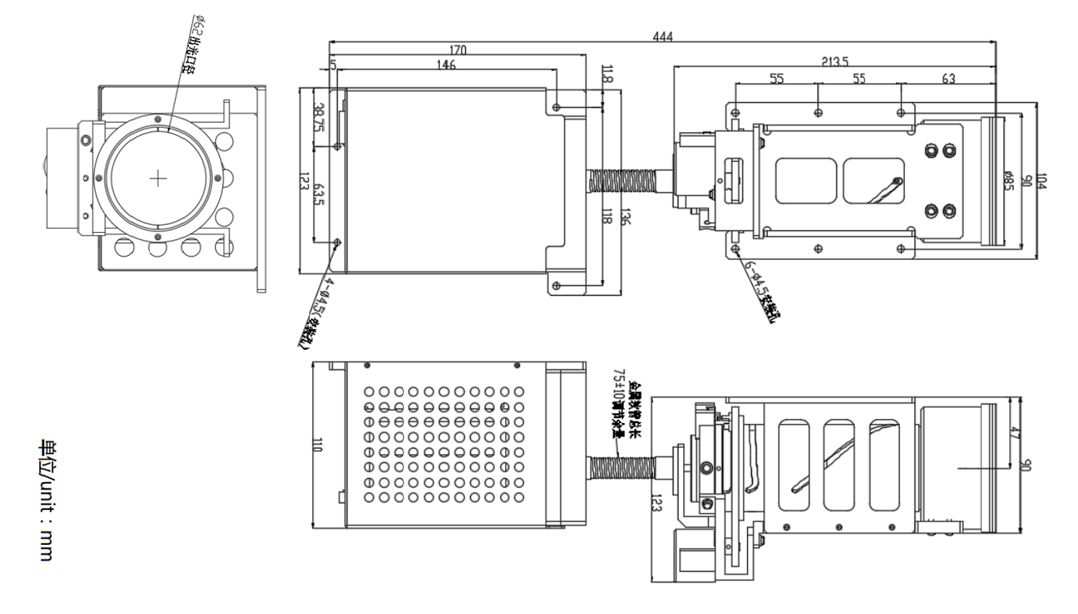

Dimension

Model

SG-IR808-3K

Effective distantia ≥3000m
Modus Fibra coitus EEL (Edge Emittens Laser)
Necem 808±10nm
Input Power <60W
Output lux Power ≥18W
Laser Beam Anglus Absit angulus 0.3°, efficax distantia>3000m, trabem Macula diametri<φ16m
Prope angulum 50°, distantia efficax> 10m
Initialization tempore 12s
Imperium Modus UART_TTL, RS-485, Manual
Communicationis Interface RS-485, TTL232, Manuale Control
Communication Protocol Pelco-D (9600bps)
Modus working Continues
Service Vita > 2000H
Input Power DC24V±10%, 2.2A±0.3A
Operatio Temperature -35°C~+55°C
Repono Temperature -40°C~+85°C
Dimension 444mmx136mmx123mm
Pondus 3.7kg
